Advanced Oligo Synthesizer with Dual Axis Motion and Independent Pipeline for High Throughput Synthesis

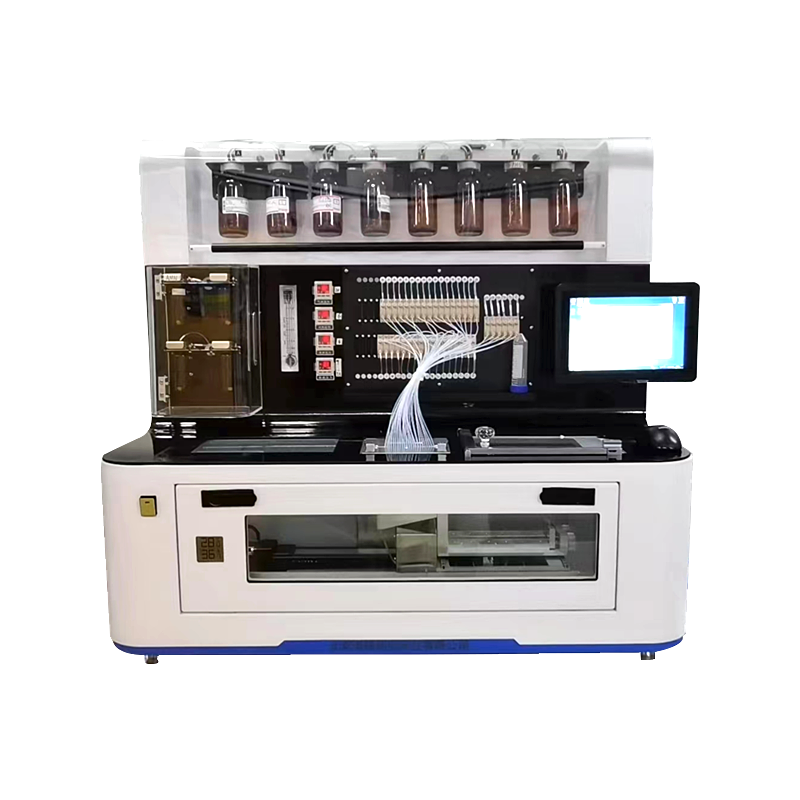

Picture Show:
Specifications:
Channel | 12 | Synthesis Type | DNA/RNA.fluorescent dyes/sulfurizing/Probe |
Mode | Reagent Injection Separately | Period(20 Mer) | 12 primers of 20bp within 2.5h |
Cycled Time | 4-6min | Synthesis Scale | 25nmol-300umol |
Coupling Rate | >99% | Max Length of Primer | 120bp |
Bearing Method | Synthetic column | Wastes | vacuum |
Base/Reagent Pouring Mode | reagent injection separately | Base/Reagent Drive Way | press out by protected gas |
Amidite Position Base | 16pcs | Reagent Position Base | 9 pcs |
Reagent Cylinder Configuration | single position standard. double optional | Reagent Bottle Size | 450ml/4L Customization |
Synthesis Merger Base | Automatic merge the base | Data Import Method | Import the sequence automatically by Excel |
Gas needed | Nitrogen or Argon | Color | Pure White |
Reagent Pipe Dimension | OD1/8' and ID/16' | Base Pipe Dimension | OD1/16, ID0.8mm |
Outsize | 1100*710*890mm | Package Size | 1200*810*1000mm |
Working Environment | 25℃±4℃ | Relative humidity | ≤45% |
Power | Single Phase/220V | Gas needed | Nitrogen or Argon |
Technical Advantages:
1 | lightweight and modular design | which is designed easy to add or removing modules. And optimize the configuration in future. |
2 | Compact design | which using an embedded control computer, no more space for computer, shortening half of the length than other similar synthesizer |
3 | Graphical operation mode | In the testing phase and the initial stage of synthesis, the pipeline can be tested automatically, the status of liquids, pipelines, valves, etc. |
4 | Larger synthesis scale | dual-axis motion system reduced the length of the column support plate ,also saves a lot of space to put larger scale columns. And it can synthesize 12 primers at the same time, which is twice as large as the traditional synthesizer |
5 | AMI/MODIFY can be flexibly configured | Base amidite and modified amidite can be set freely, and you can choose different Synthesis programme |
6 | OXI/SUL can be configured separately | OXI and SUL can be configured separately. |
7 | Independent programme of each channel | Each channel can select different sequence files and process parameters, which can set the initial synthesis position of the sequence and Initialization/finalization mode respectively, etc. For each channels programme can be saved, loaded, tested, and statistically analyzed. |
8 | Real-time display of the synthesis process | During the synthesis process, it can be paused manually or automatically, and then the operate the amidite and other reagent. |
About Us:
Honya Biotech Specialized in sales, design, production, installation and after-sales service for the DNA/RNA synthesizer. We are in this fild for more than 10 years; focused on DNA/RNA Synthesizer, Pipetting Work Station, Deprotection Equipment, Amidite Dissolved Equipment, Purification Instrument, Synthesis Columns, Phosphonamidites, Modification Amidite, Synthesis Reagents, various consumables and CPG, to provide you with the fastest and most efficient DNA/RNA synthesis products and services in the world. We can also customize our instruments to meet your requirements, making DNA/RNA synthesis faster and more flexible.
We are constantly improving the performance of our products, perfecting our production process and getting the details right. We not only provide you with high quality products, but also provide you with training and service. We are equipped with professional management staff and excellent technical team and maintenance personnel to provide our customers with perfect after-sales service.
We have 3 production base in China. Beijing/Qingdao/Changsha city.
1. Beijing production base is the factory for the instrument for primer synthesis
2. Qingdao Production base is the factory for the chemicals and consumables.
3. Changsha city is the office for the overseas marketing.
|
|
